Description

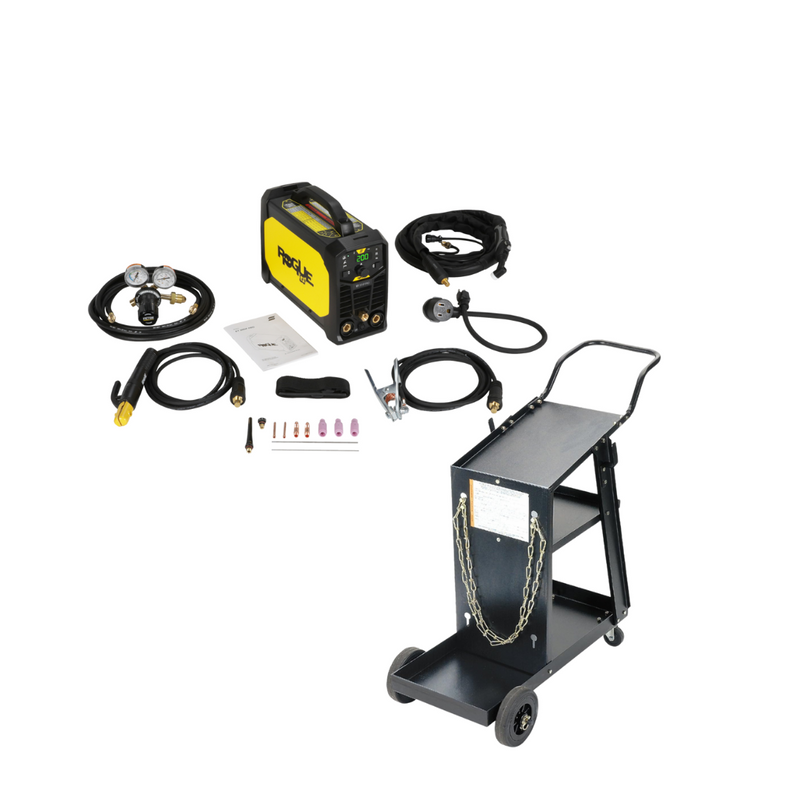

esab pedal ESAB Rogue ET 201iP Pro TIG Welder & Single Cylinder Rolling CartESAB Rogue ET 201iP Pro TIG Welder 0705002023 Details Rogue ET 201iP Pro is a powerful high frequency start TIG machine. This easy to use welder is designed with a robust and durable housing that is IP23S rated. Weighing only 9. 6 kg (21. 2 lbs) this lightweight welder features an ergonomic handle, carrying strap and long extension cables for maximum portability. Rogue ET offers exceptional arc characteristics, both in TIG and Stick mode. Want more
ESAB Rogue ET 201iP Pro TIG Welder | 0705002023
Details
Rogue ET 201iP Pro is a powerful high frequency start TIG machine. This easy to use welder is designed with a robust and durable housing that is IP23S rated. Weighing only 9.6 kg (21.2 lbs) this lightweight welder features an ergonomic handle, carrying strap and long extension cables for maximum portability.
Rogue ET offers exceptional arc characteristics, both in TIG and Stick mode. Want more control over your welder? Rogue ET provides several TIG parameters that can be easily adjusted including gas pre flow, start current, ramp up time, ramp down time, finish current and post flow. All of which can be programmed using 2 or 4 stroke mode for greater arc control. Additionally, Rogue ET 201iP PRO offers a pulse feature with background current control and frequency adjustments up to 500 Hz for better heat input control. In Stick mode, Hot Start or Arc Force can be adjusted according to individual welding preferences or applications.
New Pulse SMAW functionality enhances Rogue's performance and improves the heat input control, to minimize thin gauge materials distortion , facilitate out-of-position welding with no undercuts and reduces spatter, thus helping to effectively avoid a number of welding defects.
Highlights
- High Frequency TIG start, prevents contamination of weld surface and improves weld quality
- Pulse MMA functionality – improves heat input control, minimizes distortion of thin materials and helps reduce spatter for higher quality welds
- Easy to Use – set the welding current and adjust a wide range of arc parameters for more control over your weld, also suitable for use with compliant generators
- Robust Housing – IP23S designed for both fabrication floor or site applications
- Advanced TIG parameter control to match every application and pulse feature up to 500 Hz for better heat input control
- Power Factor Correction (PFC) – ensures a stable arc, resistant to power fluctuations even while working on long extension cables up to 100 m (PRO version)
- Compatible with current adjusting foot pedal (sold separately)
Industries
- Agricultural Equipment
- Civil Construction
- Industrial and General Fabrication
- Repair and Maintenance
Process
- SMAW/MMA (Stick)
- GTAW (TIG)
- GTAW-P (Pulsed TIG)
Specifications
| Specifications | |
|---|---|
| Input Voltage | 120-230 ±15% VAC , 1 Φ, 50/60 Hz |
| Stick (SMAW) Welding Output | 200 A28.0 V (230 V) @ 25 % Duty Cycle 129 A25.2 V (230 V) @ 60 % Duty Cycle 100 A24.0 V (230 V) @ 100 % Duty Cycle |
| TIG (GTAW) Welding Output | 200 A18.0 V (230 V) @ 25 % Duty Cycle 129 A15.2 V (230 V) @ 60 % Duty Cycle 100 A14.0 V (230 V) @ 100 % Duty Cycle |
| Current Range | 10-200 A |
| Open Circuit Voltage | 78 VDC |
| Energy Save Mode | 50 W |
| Operating Temp | -10 to +40 °C ( +14 to +104 °F ) |
| Rated kVA | 7 kVA |
| Enclosure Class | IP23S |
| Certification Mark | CSA |
| Dimensions, L x W x H |
403 x 153 x 264 mm ( 15.8 x 6 x 10.4 in. ) |
| Weight | 9.6 kg |
| Setting Range |
10-140 A 10-200 A |
